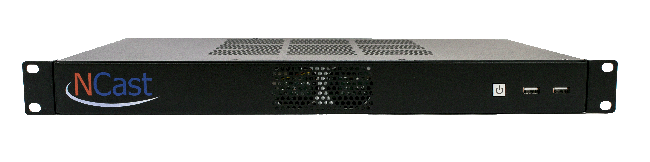

Presentation Recorder Hydra - Discontinued

The PR-Hydra is the newest of NCast's presentation recorder products. It is the first in the industry to record two full-screen layouts and create a composite layer. Previous NCast products have side-by-side window viewing. The new PR-Hydra has three windows, which allows for streaming of three different views while retaining the high-quality original recording.

Presentation Recorder Hydra

US
A4
Presentation Recorder Hydra Reference Manual Presentation Recorder Hydra Flyer
Simply connect your source, connect to the network, start the interface, and you're broadcasting your presentation.


  • Dual-Screen Recording and Streaming: Use the two high-quality recordings to edit or reformat the content. The bit rate can be modified to better stream on a lower-resolution viewing device while still providing high-quality recording playback and streaming.
  • Three Active Windows: Use the three active windows to select various sources and display them as a dual-screen with synchronized playback and streaming.
  • High-resolution, High Frame-rate Recording: The recording of 1080p 60-frame/second progressive playback visual material provides for enhanced video clarity and the reduction of visual artifacts found in lower frame-rate recordings.
  • Record and Stream at Various Qualities: Supports up to WUXGA (1920x1200) input and WXGA (1280x720) capture and streaming capabilities. Retain full integrity of original image using motion adaptive de-interlacing.
  • Multiple All-Digital Inputs with Traditional VGA and Composite: The PR-Hydra is NCast's premium recorder/streamer that supports both digital connections and legacy analog equipment. It offers a full input connector lineup with 3G-SDI, HDMI (2x), DVI-I, DisplayPort, VGA, and Composite, alongside output to HDMI or RGB. Dual balanced audio inputs provide for professional level recording of stereo sources.
  • Picture-by-picture Composition and Graphical Overlays: The compositing of presenter, presentation, alongside overlay graphic provides for a simple yet extremely useful set of layouts for recording and streaming presentations and lectures.
  • Multiple Command and Control Interfaces: It is simple to control the PR-Hydra from the NCast Quickstart webpage and/or serial command systems. Use RS-232 control commands with buttons to just record and stream, or provide a robust set of controls for a more comprehensive control system.
